ALPHA: Murphy Bed Mechanism & Universal Rail Hardware

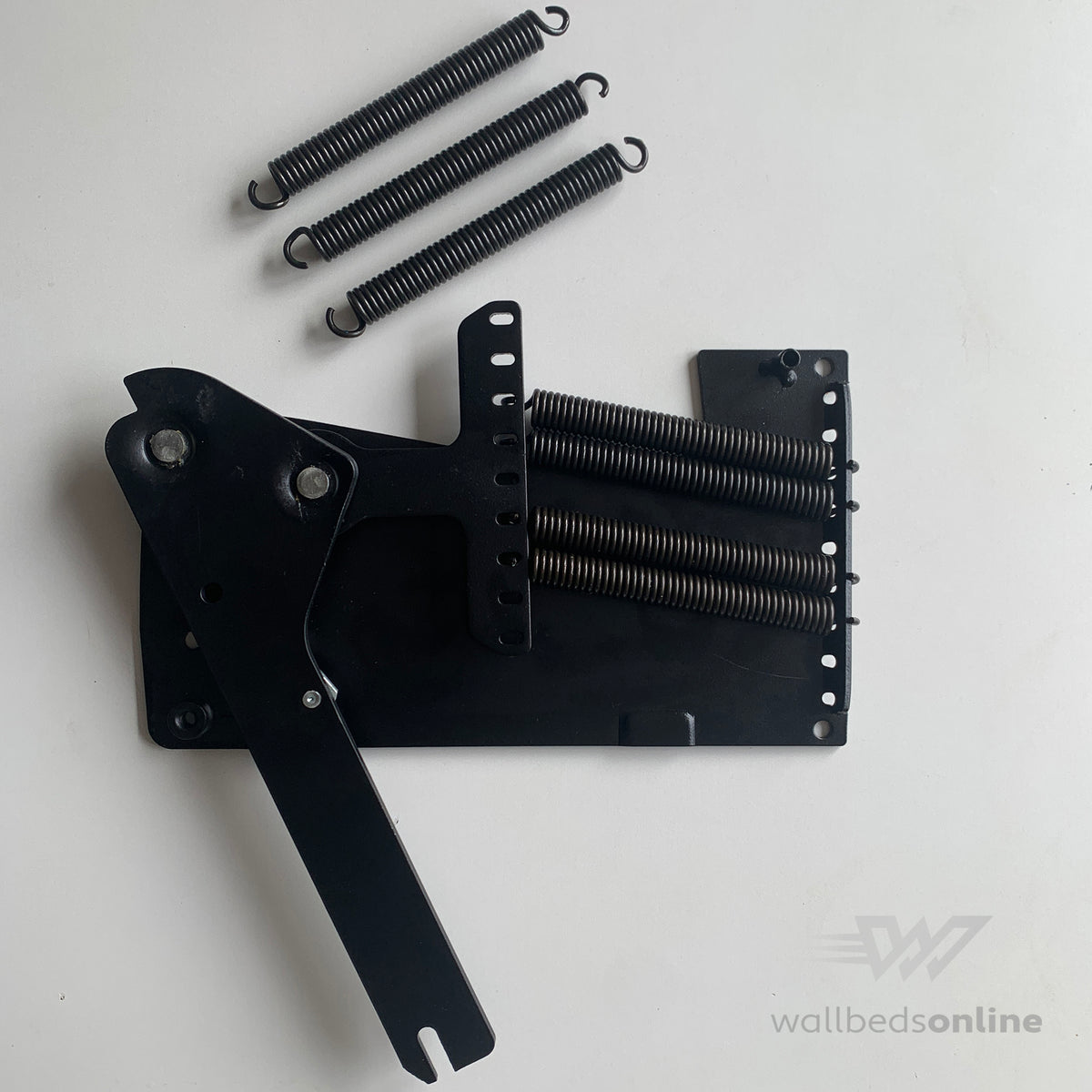

The Alpha Kit contains our quality Steel Spring Mechanism and Steel Powder Coated Legs and Rail System.  It also includes all the necessary hardware to complete assembly of this system.  For this Kit you supply the Cabinetry, the Mattress and Labour!

Our Alpha Bed Kit includes:

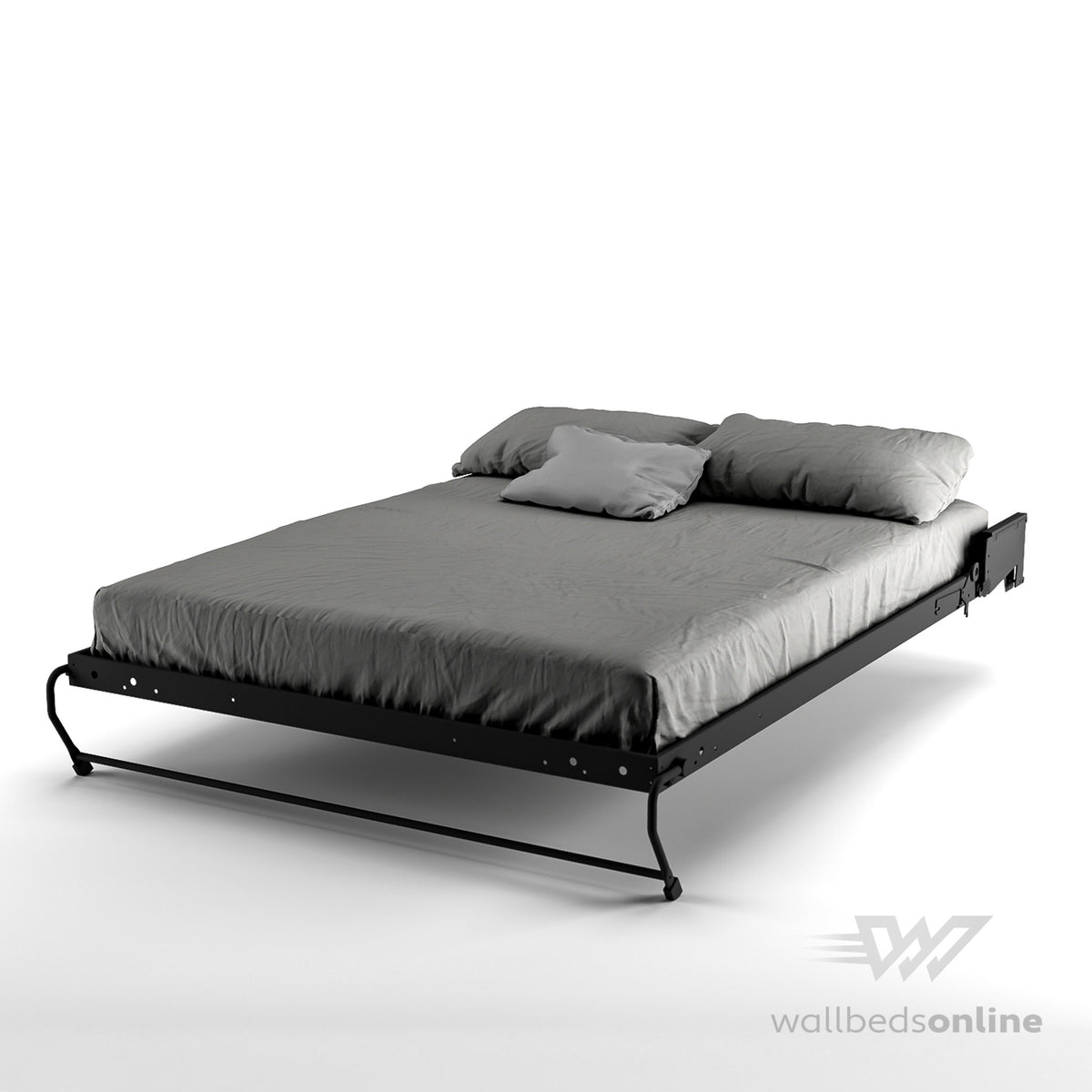

• Spring Mechanism
• Springs
• Rail System
• Legs and Leg Bar
• Assembly Hardware

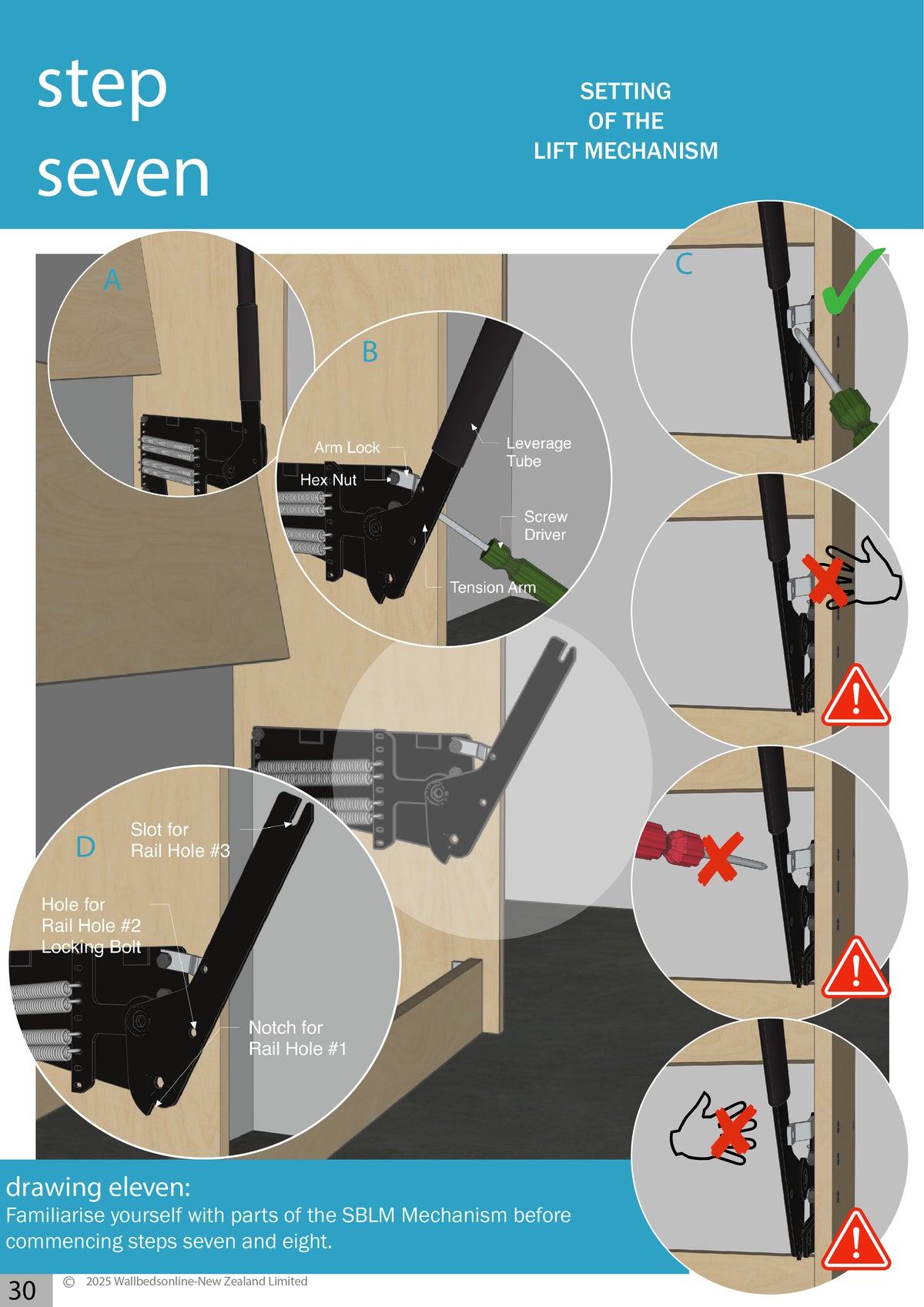

• Full Instructions
• Cabinetry and Drilling recommendations

Our Alpha Bed Kit does not include:

• Cabinetry
• Mattress (Click here if you would like a mattress)
• Assembly and installation

If viewing this post a on mobile device, you may need to rotate your device into a landscape format to view the below tables clearly.

Recommended VERTICAL Cabinetry Dimensions when completed:

	WIDTH	DEPTH	HEIGHT	DEPTH WHEN OPEN
SINGLE	1128mm	406mm	2115mm	2146mm
DOUBLE	1509mm	406mm	2115mm	2146mm
QUEEN	1662mm	406mm	2242mm	2273mm

Recommended HORIZONTAL Cabinetry Dimensions when completed:

	WIDTH	DEPTH	HEIGHT	DEPTH WHEN OPEN
SINGLE	2030mm	406mm	1264mm	1245mm
DOUBLE	2030mm	406mm	1645mm	1626mm
QUEEN	2156mm	406mm	1797mm	1778mm

Mattress Maximum Dimensions:

	WIDTH	LENTH	DEPTH
SINGLE	990mm	1905mm	280mm
DOUBLE	1372mm	1905mm	280mm
QUEEN	1524mm	2032mm	280mm



Skill Level - ADVANCED*

This kit is designed for cabinetry/furniture makers, joiners and advanced DIY enthusiasts.

While we provide comprehensive instructions, certain skills are required that entry-mid level DIYers may not yet possess. If you find the instructions challenging, we recommend hiring a local cabinetry joiner/maker or handyman to assist with the cabinetry manufacturing, assembly and installation of your wall bed.

If you require more information prior to purchase about our assembly instructions, please call us on 0800 WALL BED (0800 925 523) or email on info@wallbedsonline.co.nz.

* More information on the skills required can be found listed further down this page.

SHIPPING COST

Wallbedsonline works with Mainfreight 2Home to ship our Alpha Murphy Bed Mechanism and Rail Kits to households and businesses around New Zealand. Shipping costs are calculated based on the Wall Bed Kit size/weight and your location.

For those who are looking for an accurate price to ship to your address, pop the relevant product in your cart and proceed to the checkout. Once you enter your address, the delivery price will be calculated for you.

This step alone does not commit you to purchasing; you will not be charged until you fill out your payment information and then confirm your order by clicking on ‘Pay Now’.

 If, in the rare event, your address is not available for delivery, we can freight your product to the depot nearest to you for pick up. Please contact us directly on 0800 925 523 or info@wallbedsonline.co.nz if you would like to discuss this further.

DISPATCH

Once we have received your payment, we aim to have your items picked and ready for shipping within 1 to 3 business days. Mainfreight 2Home will then pick up your order from our factory and we will forward tracking information to you.

DELIVERY TIMING

NORTH ISLAND - 2 to 3 working days for delivery.

SOUTH ISLAND (CHRISTCHURCH AND ABOVE)* - 4 to 7 working days for delivery.

LOWER SOUTH ISLAND* - 6 to 9 working days for delivery.

* Shipments to the South Island are freighted from our local depot on Tuesday and Thursday of each week

For any questions around delivery you can contact us directly on 0800 925 523 or info@wallbedsonline.co.nz.
