BETA: Murphy Bed Mechanism and Leg System Hardware
BETA: Murphy Bed Mechanism and Leg System Hardware
Delivery calculated at Checkout
Couldn't load pickup availability
HARDWARE KIT ONLY - CABINETRY NOT INCLUDED
NEW SHIPMENT DUE EARLY TO MID NOVEMBER!

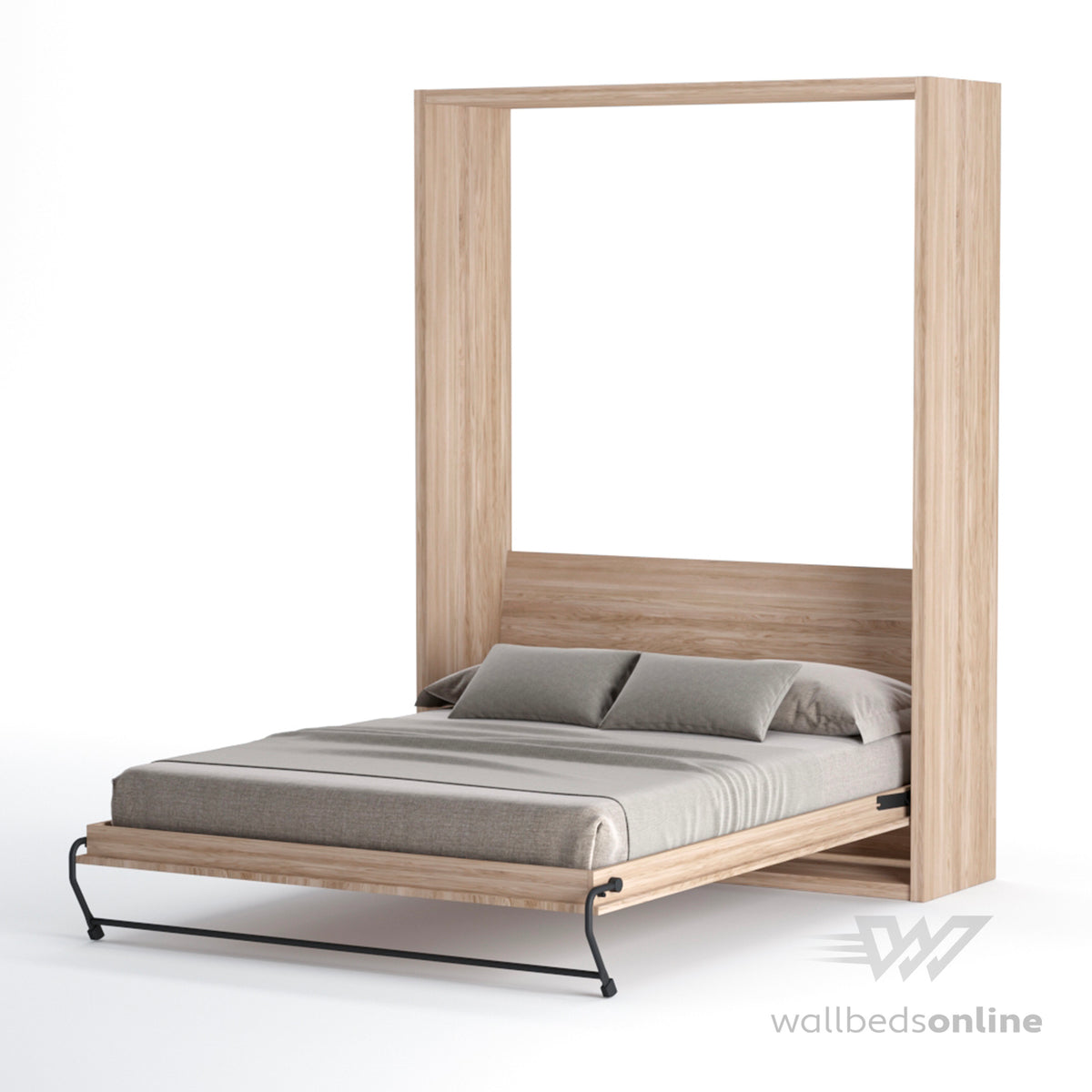

All Murphy Wall Bed sizes and orientations in one kit!
Wallbedsonline Beta Murphy Bed Hardware Kit gives you even more freedom to work outside of the box to make your wall bed vision come to life.
This Mechanism, Leg and Partitioned Leg Bar Wall Bed Kit is suitable to be used by experienced cabinetry and furniture makers who either need a non-standard sized custom bed, or who would like to create a bespoke bed with timber rails.
INCLUDED IN KIT
INCLUDED IN KIT
The Beta Kit contains our quality Steel Spring Mechanism System. It also includes all the necessary hardware to complete assembly of this system. It does not include the Steel Universal Rail System.
Our Beta Bed Kit includes:
- Spring Mechanism
- Springs
- Legs
- Partitioned Leg Bar
- Assembly Hardware
- Full Instructions
- Cabinetry and Drilling recommendations
Our Beta Bed Kit does not include:
- Steel Universal Rail System
- Cabinetry
- Mattress
- Assembly or installation
DIMENSIONS
DIMENSIONS
The Beta Kit allows you to create alternative finished cabinetry dimensions outside of the standard sizing. Reach out to us on the contact form, or call us on 0800 925 523 to find out more about these sizing possibilities.
For those looking at standard sizing, the Beta Manual includes all Drilling and Cabinetry Panel dimensions required.
If viewing this post a on mobile device, you may need to rotate your device into a landscape format to view the below tables clearly.

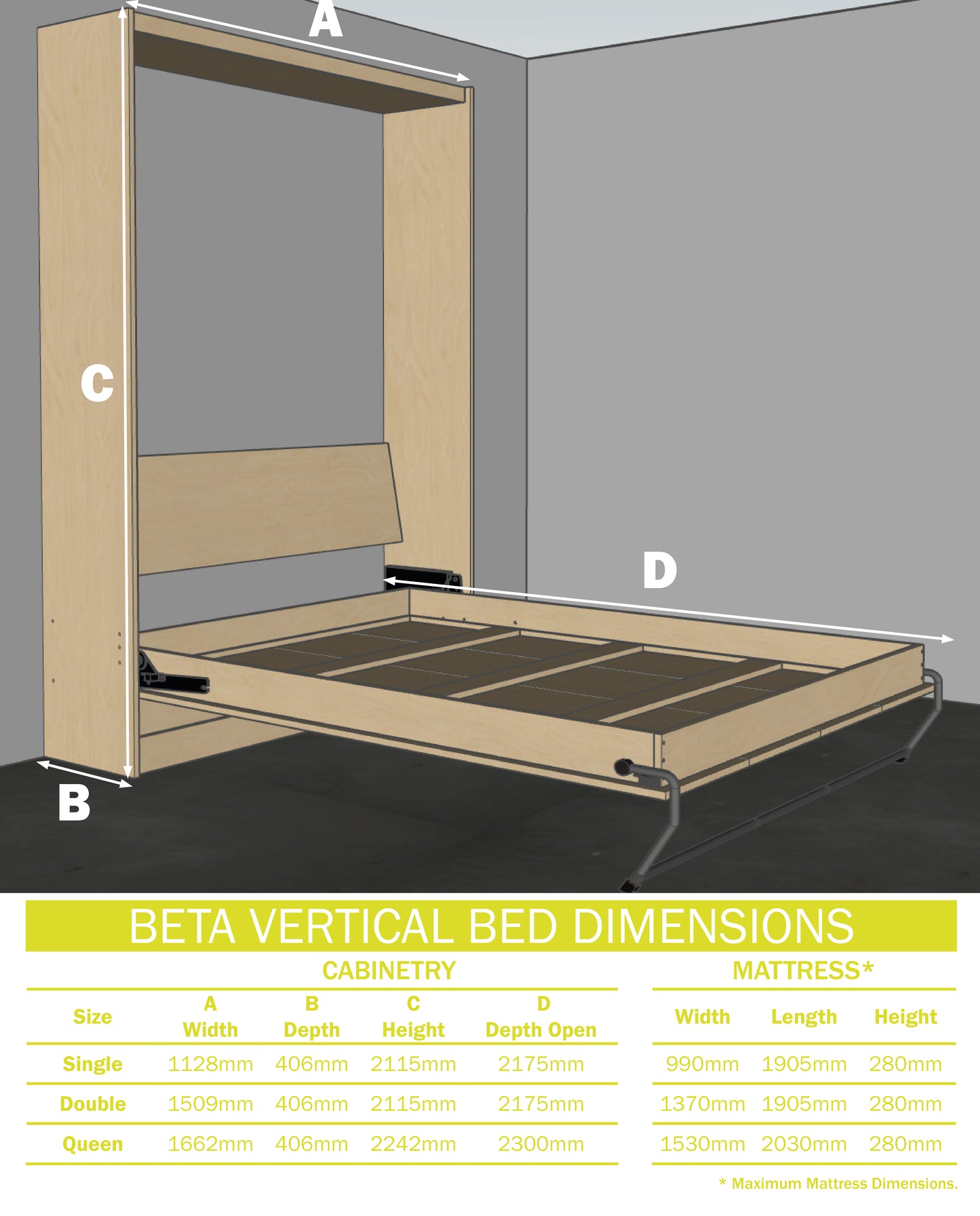

Recommended VERTICAL Cabinetry Dimensions when completed:
|
WIDTH |
DEPTH |
HEIGHT |
DEPTH WHEN OPEN |
|
|
SINGLE |
1128mm | 406mm | 2115mm | 2146mm |
|
DOUBLE |
1509mm | 406mm | 2115mm | 2146mm |
|
QUEEN |
1662mm | 406mm | 2242mm | 2273mm |
Recommended HORIZONTAL Cabinetry Dimensions when completed:
| WIDTH |
DEPTH |
HEIGHT |
DEPTH WHEN OPEN |
|
|
SINGLE |
2030mm | 406mm | 1264mm | 1245mm |
| DOUBLE | 2030mm | 406mm | 1645mm | 1626mm |
| QUEEN | 2156mm | 406mm | 1797mm | 1778mm |
Mattress Maximum Dimensions:
| WIDTH | LENTH | DEPTH | |
| SINGLE | 990mm | 1905mm | 280mm |
| DOUBLE | 1372mm | 1905mm | 280mm |
| QUEEN | 1524mm | 2032mm | 280mm |
ASSEMBLY
ASSEMBLY
Skill Level - EXPERT*
This kit is designed for cabinetry/furniture makers, joiners and advanced DIY enthusiasts.
While we provide comprehensive instructions, certain skills are required that entry-mid level DIYers may not yet possess. If you find the instructions challenging, we recommend hiring a local cabinetry joiner/maker or handyman to assist with the cabinetry manufacturing, assembly and installation of your wall bed.
If you require more information on our Assembly Instructions prior to purchase, please call us on 0800 WALL BED (0800 925 523) or email on info@wallbedsonline.co.nz.
* More information on the skills required can be found listed further down this page.
DELIVERY
DELIVERY
SHIPPING COST
Wallbedsonline works with NZ Post Courier Network to deliver our Beta Hardware Kit.
Final cost will be based on your location, and will be confirmed in cart once you have confirmed your delivery address.
This step alone does not commit you to purchasing; you will not be charged until you fill out your payment information and then confirm your order by clicking on ‘Pay Now’.
If, in the rare event, your address is not available for delivery, please contact us directly on 0800 925 523 or info@wallbedsonline.co.nz to discuss alternative options.
DISPATCH
Once we have received your payment, we aim to have your items picked and ready for shipping within 1 to 3 business days.
DELIVERY TIMING
The Beta Kits are sent via overnight courier, but please allow extra time for factors out of our influence, such as your location, delivery restrictions relevant to your location, weather etc.
NORTH ISLAND - Overnight (2-3 days for rural delivery).
SOUTH ISLAND (CHRISTCHURCH NORTH) - Overnight (2-3 days for rural delivery).
LOWER SOUTH ISLAND - Overnight (2-3 days for rural delivery).
Share
SBLM MECHANISM AND BETA PARTITIONED LEG ROD
Our Beta Kits are the perfect blend of quality and flexibility so that you can customise your Murphy Wall Bed:

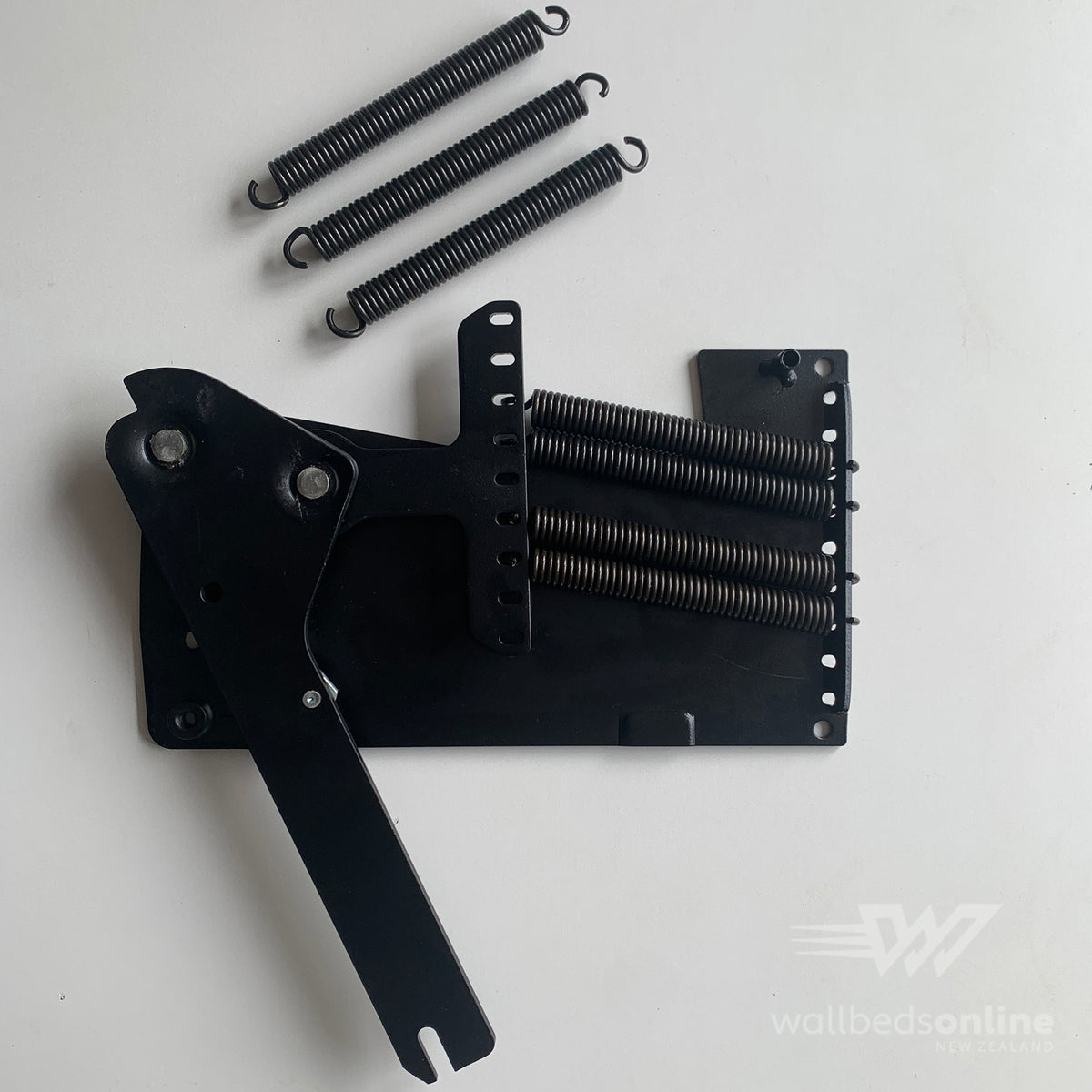

Premium Steel Spring Mechanism: Ensures smooth and reliable operation.

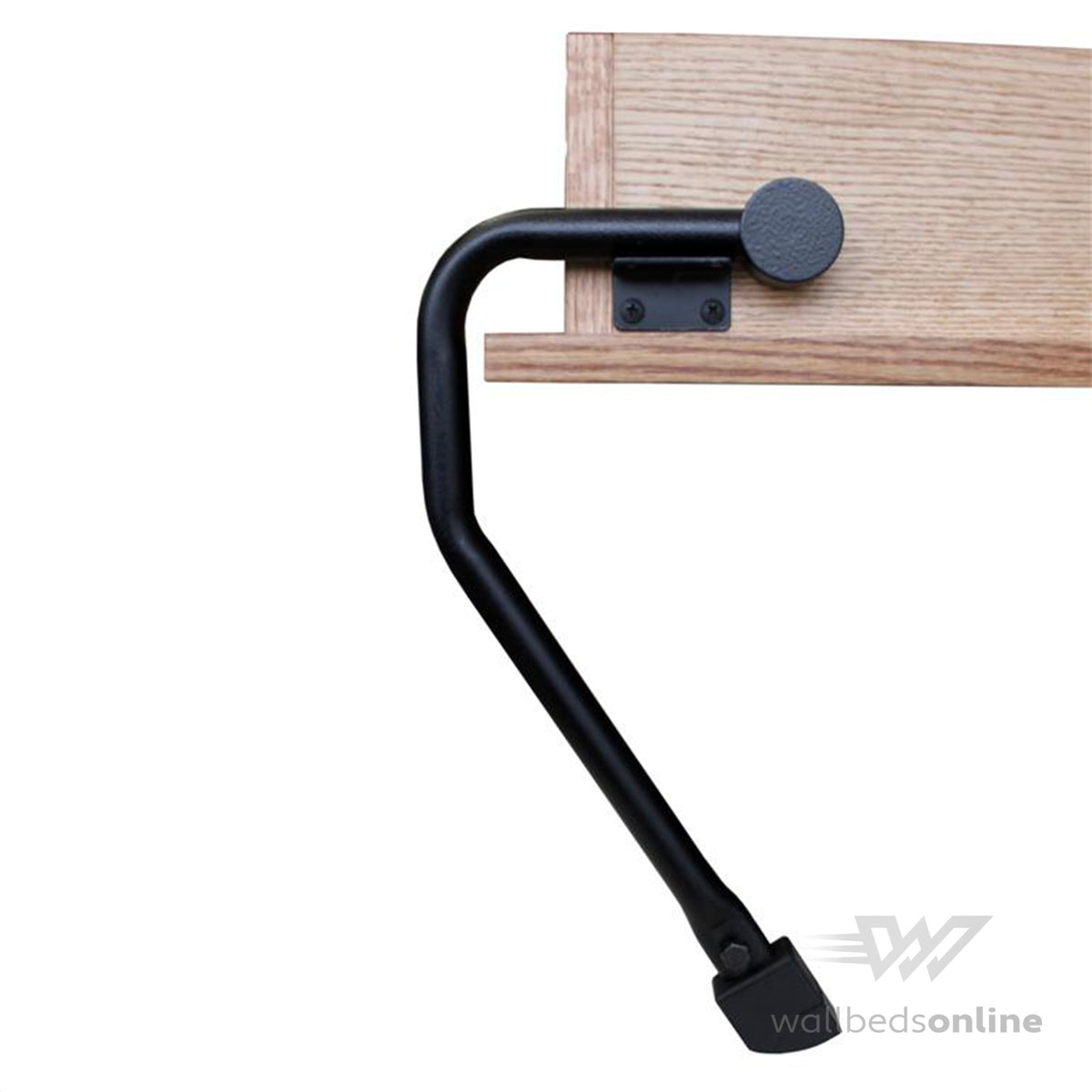

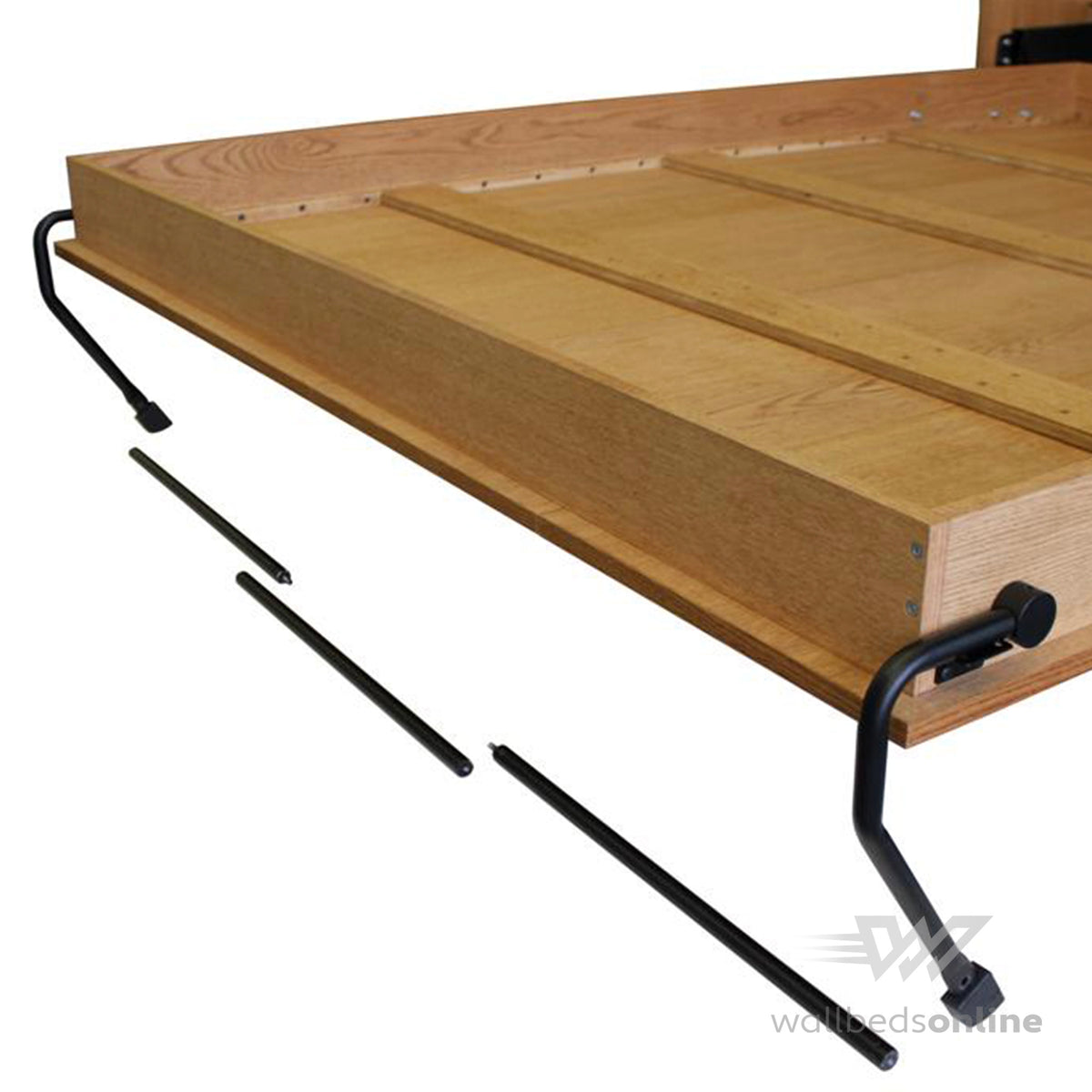

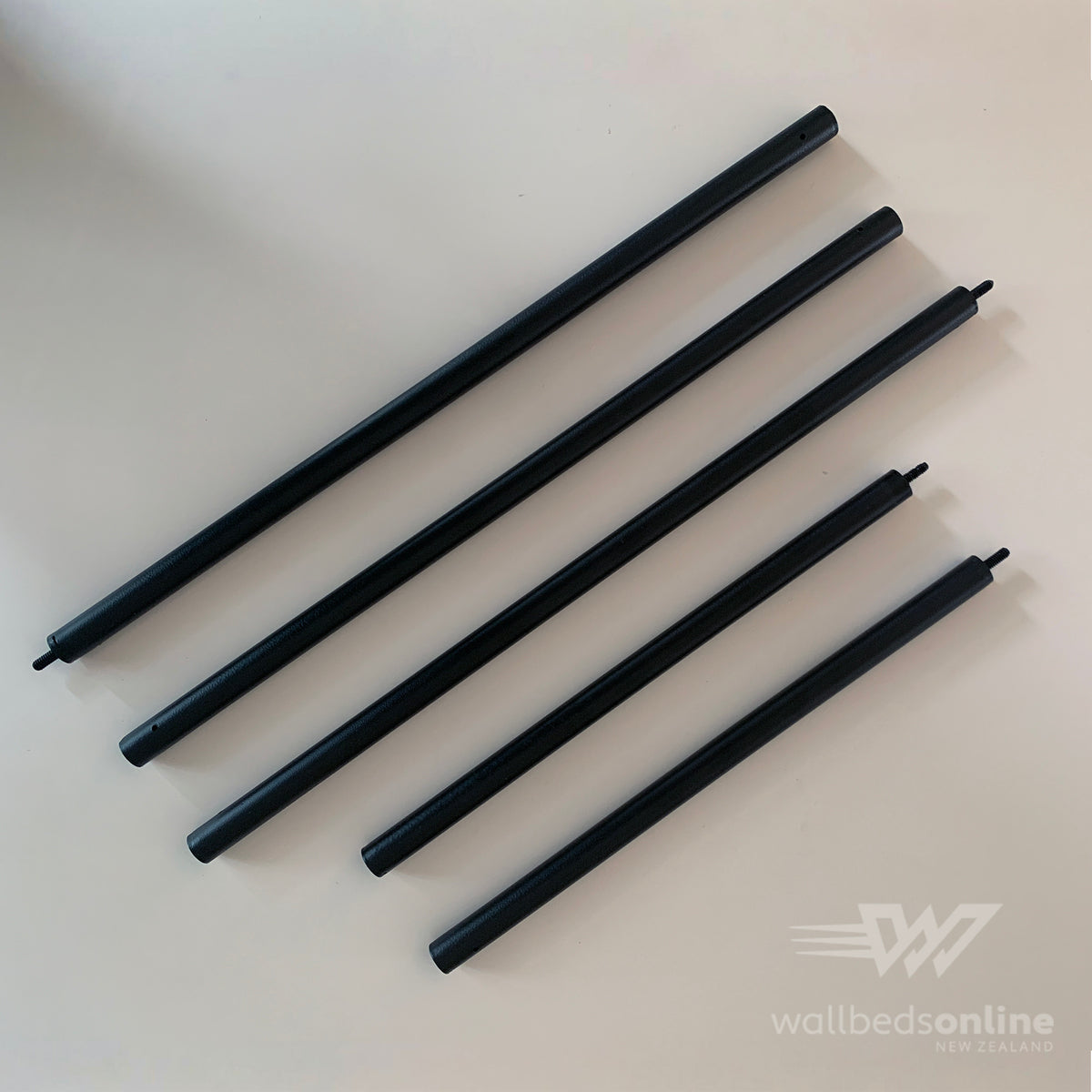

Durable Steel Powder Coated Legs and Partioned Leg Bar: Built to last and provide sturdy support with flexibility of sizing.
For over 30 years, customers worldwide have enjoyed the reliability and excellence of Wall Bed Systems Ltd products. Transform your space with ease and confidence, knowing you're investing in a trusted solution that stands the test of time.

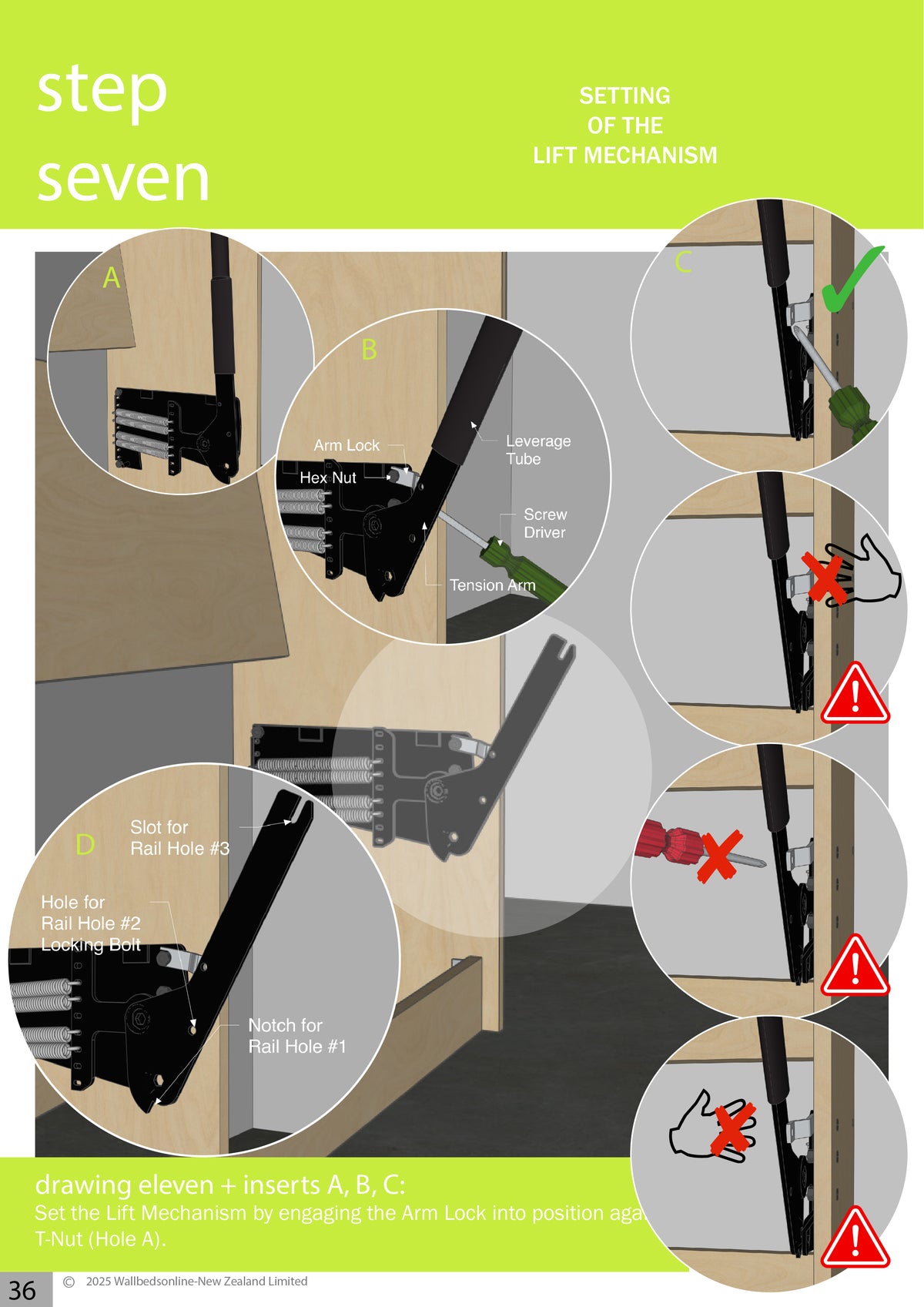

Comprehensive Assembly Manual
With decades of experience in Wall Bed specification and installation, our team has crafted a comprehensive assembly manual. This guide is designed to empower experienced Cabinetry/Furniture Makers, Joiners and advanced DIYers to confidently assemble and install their own Murphy Beds.
Our Beta Manual includes:
Step-by-Step Instructions: Detailed descriptions and clear, easy-to-follow drawings guide you through each stage of the assembly process. Each step is carefully explained to ensure you understand the procedure and can complete it with ease.
Wall Bed Safety: Specially highlighted safety instructions are included to protect you and others during the assembly and installation process of your Murphy Bed.
Post-Installation Information: Guidance on the best practices for using your Wall Bed. Maintenance tips to keep your Murphy Bed in excellent condition, including how to address any potential issues that may arise.
Our manual is designed to make the assembly and installation process as smooth and straightforward as possible, ensuring you can enjoy the benefits of your new wall bed with confidence.
Skill Level Required - EXPERT
- Follow precise instructions in required order
- Identify parts and hardware
- Advanced skills for precise measuring and drilling
- Squaring off and levelling of cabinetry
- Locating solid framing in walls for fixing
- Scribing out of Cabinetry Panel (for skirting board/detail)
- Heavy lifting with precise coordination
- Comprehension to follow and adhere to detailed safety instructions
- Cabinetry design knowledge and understanding of materials
- Experience and mastery of practical cabinetry manufacturing skills
- Extensive power tool and workshop equipment experience
